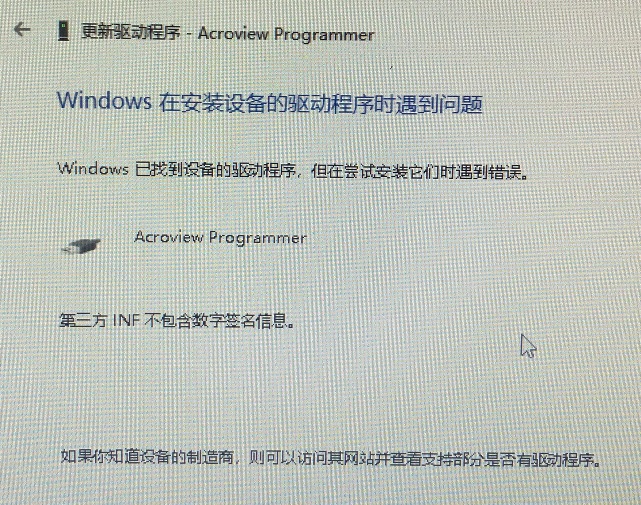

1.0 When the icon content appears, please do the following

1.1. Advanced startup:

(1) Advanced startup computer: Start  Settings  Update and Security  Recovery  Advanced startup  Start now.

(2). Select "Troubleshooting" -> select "Advanced options" -> select startup settings, click the restart button (the computer restarts at this time) -> press the number key 7 (indicating to disable the driver's mandatory signature)

Detailed screenshots and instructions are as follows:

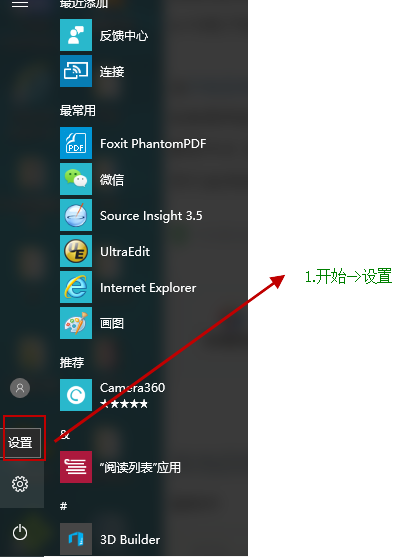

1.1.1. Start-Settings

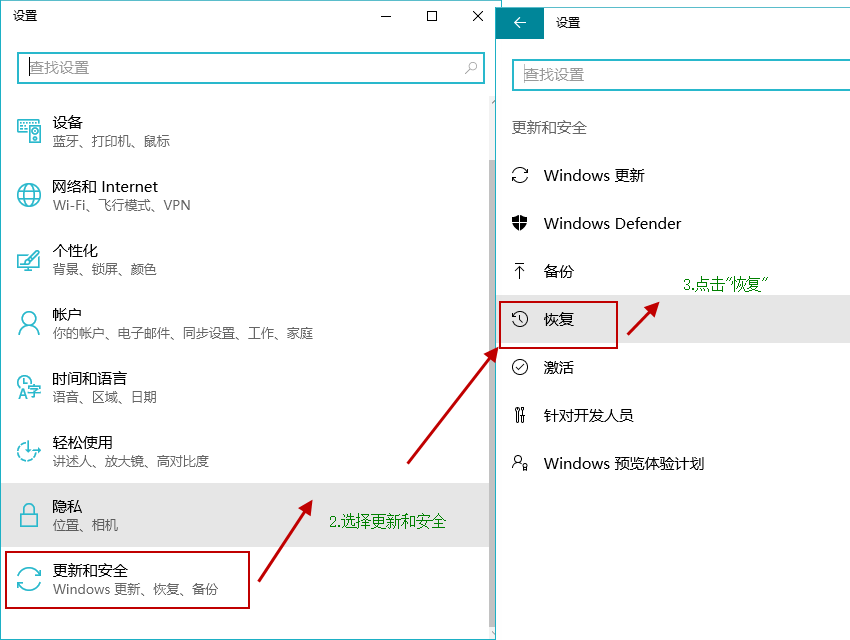

1.1.2. Update and Security-Restore

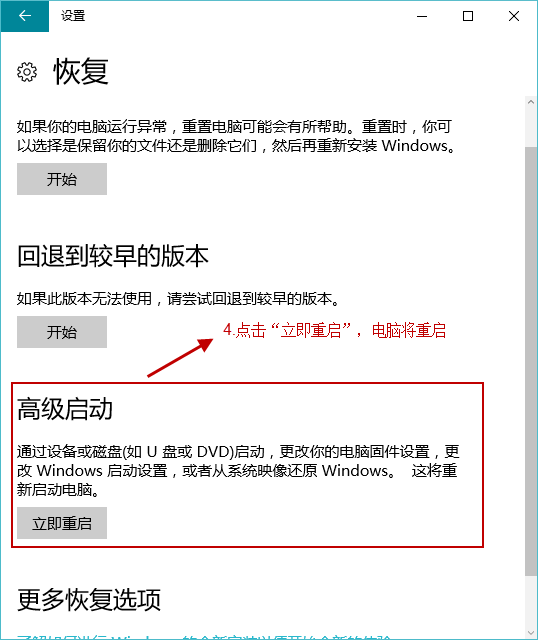

1.1.3.  Advanced startup-restart now

1.1.4.

Select "Troubleshooting" -> select "Advanced Options" -> select startup settings, click the restart button (the computer restarts at this time) -> press the number key 7 (indicating to disable the mandatory signature of the driver)

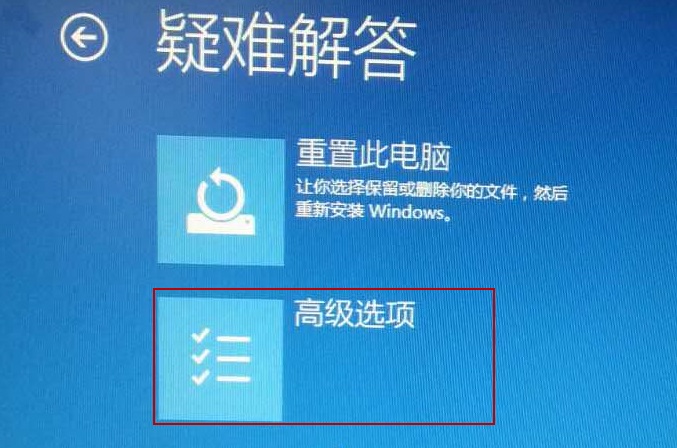

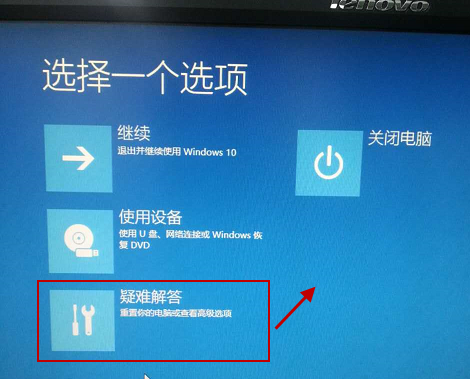

● Troubleshooting

●  advanced options

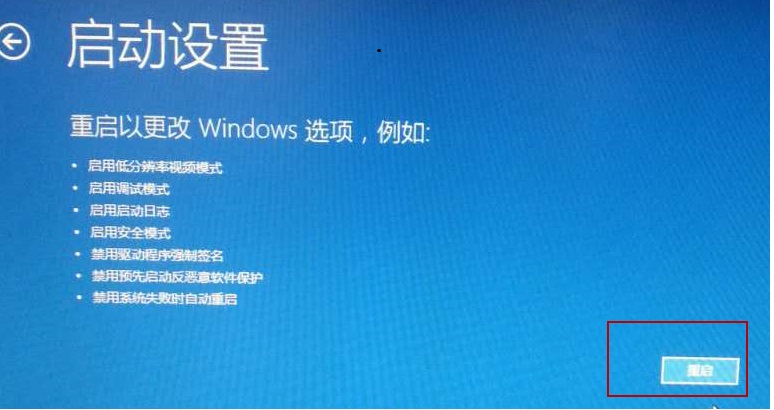

  ●  Restart button

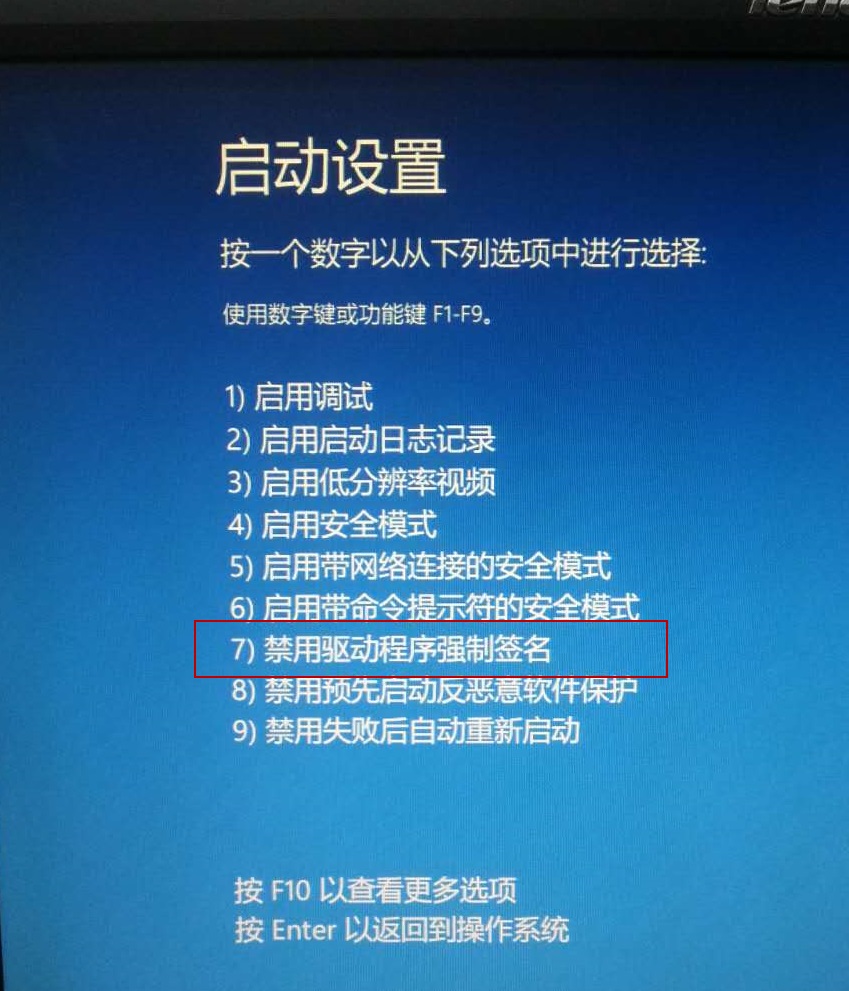

●  按数字键7

1.2. Install the driver

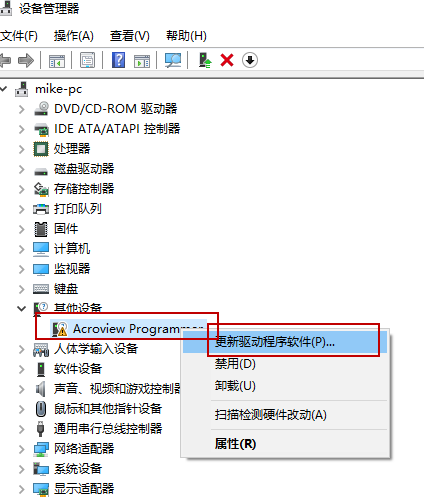

1.2.1. Enter the device manager:

Right click "Acroview Programmer"==Update driver software...

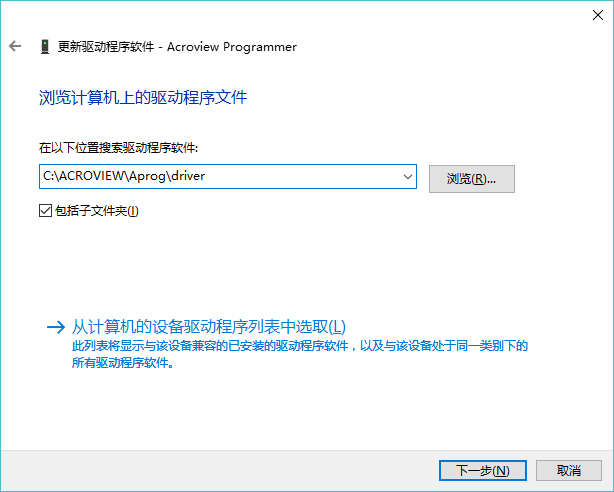

1.2.2. Manually select driver software:

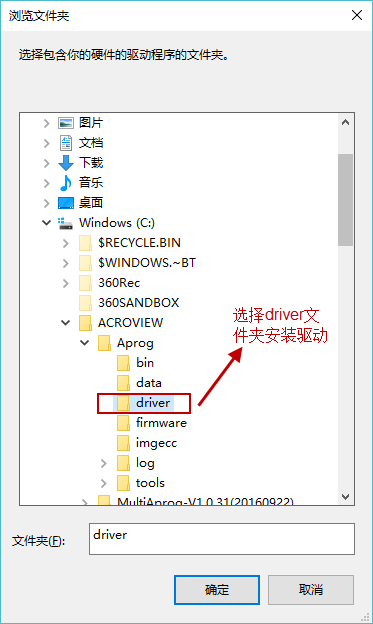

Select "Browse computer to find driver software", the driver software is in the Driver folder in the Aprog.exe installation directory, the default path is: C:ACROVIEWAprogdriver, select the driver folder to install the driver

1.2.3. Confirmation of successful driver installation:

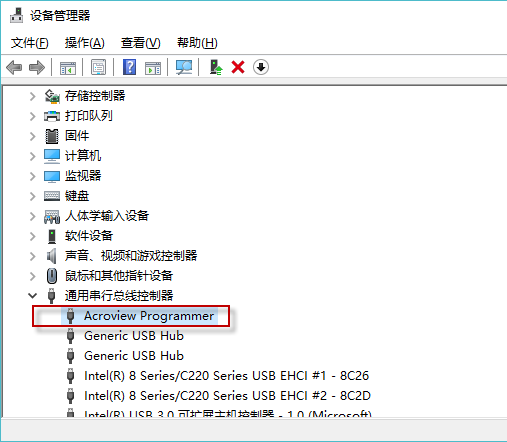

After the driver is installed, the exclamation mark is no longer used in front of the Acroview Programmer in the device manager, as shown below:
