The Acroview's Programmer supports the 32-bit Fixed-point DSP ADP32F034QP64S from AdvanceChip E

author::Microelectronicsrelease date:2023-12-18Viewers:1031

The chip programming industry leader, Acroview Technology, recently released the latest programming software updates and an additional list of supported chip models. The AdvanceChip Electronics' 32-bit fixed-point DSP ADP32F034QP64S has been supported by Acroview's universal programming platform AP8000.



The ADP32F034QP64S is the latest product on the AdvanceChip Electronics' fixed-point DSP platform, based on the ADP32Fx controller with the same 32-bit fixed-point architecture as the existing ADP32FxMCU. It is a highly efficient C/C++ engine that allows users to develop their control system software using high-level languages and also develop mathematical algorithms using C/C++.



The ADP32F034QP64S is equally effective in handling DSP arithmetic tasks and system control tasks which are typically handled by microcontroller devices. This efficiency eliminates the need for a second processor in many systems. With its 32x32-bit MAC function and 64-bit processing capability, the device can effectively handle high digital resolution issues. The device features fast interrupt response with automatic context saving of critical registers internally, allowing it to handle many asynchronous events with minimal delay. It also has an 8-stage deep protected pipeline with pipelined memory access. This pipelined operation allows the device to execute instructions at high speed without the need for expensive high-speed memory. Advanced branch prediction hardware significantly reduces the latency caused by conditional discontinuities. Special memory condition operations further enhance performance.

ADP32F034QP64S



Product Features

• Efficient 32-bit Central Processing Unit (CPU) (ADP32Fx core)

• Operating frequency of 60MHz (16.67ns cycle time)

• 3.3V single power supply

– Integrated power-on and undervoltage reset sources

• On-chip flash memory, SRAM, OTP memory

• Code security module

• Serial port peripherals (SCI/SPI/I2C/LIN/eCAN)

• Enhanced control peripherals

– Enhanced Pulse Width Modulator (ePWM)

– High-Resolution PWM (HRPWM)

– Enhanced Capture (eCAP)

– High-Resolution Input Capture (HRCAP)

– Enhanced Quadrature Encoder Pulse (eQEP)

– Analog-to-Digital Converter (ADC)

– On-chip temperature sensor

– Comparators

• Efficient 32-bit Central Processing Unit (CPU) (ADP32Fx)

– 60MHz (16.67ns cycle time)

– 16x16 and 32x32 Multiply-Accumulate (MAC) operations

– 16x16 dual MAC

– Harvard bus architecture

– Coherent operations

– Fast interrupt response and handling

– Unified memory programming model

– Efficient code (using C/C++ and assembly language)

• Programmable Control Law Accelerator (CLA)

– 32-bit floating-point arithmetic accelerator

– Code execution independent of the main CPU

• Strong electrostatic discharge (ESD) protection capability

– ESD human body model (HBM): ±4000V

• Low cost

– No need for power sequencing

– Integrated power-on and undervoltage reset

– Low power consumption

– No analog support pins

• Clock and system control

– Two internal zero-pin oscillators

– On-chip oscillator/external clock input

– Support for dynamic phase-locked loop (PLL) ratio change

– Clock loss detection circuit

• Up to 45 individually programmable multiplexed GPIOs with input filtering

• Peripheral Interrupt Expansion (PIE) module supporting all peripheral interrupts

• Three 32-bit CPU timers

• Independent 16-bit timers in each ePWM module

• On-chip memory

– Flash, SRAM, OTP, boot ROM available

• 128-bit secure key/lock

– Protects secure memory blocks

– Prevents hardware reverse engineering

• Serial port peripherals

– One SCI (UART) module

– Two SPI modules

– One Inter-Integrated Circuit (I2C) bus

– One Local Interconnect Network (LIN) bus

– One Enhanced Controller Area Network (eCAN) bus

• Advanced simulation features

– Analysis and breakpoint functionality

• Package options

– 56-pin Very Thin Quad Flat No-Lead (VQFN) package

– 64-pin Low-Profile Quad Flat Package (LQFP)

– 80-pin Low-Profile Quad Flat Package (LQFP)

– 48-pin Low-Profile Quad Flat Package (LQFP)

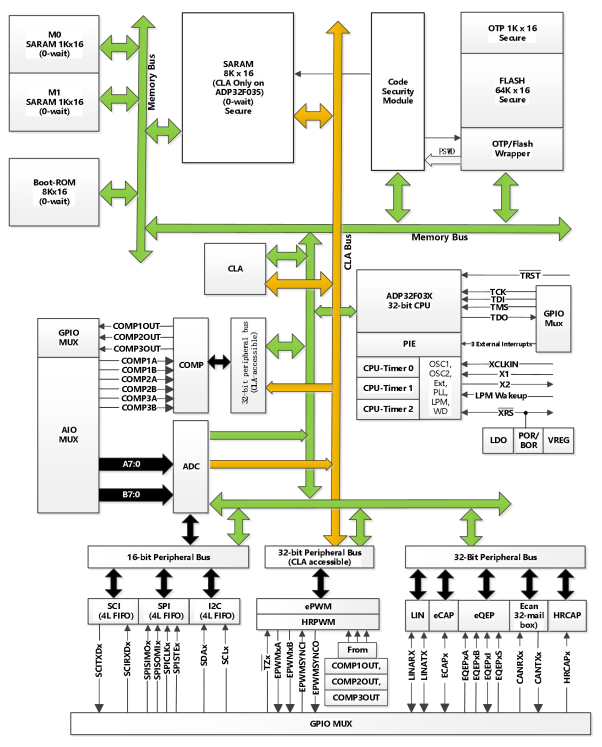

Block Diagram





Acroview Technology's independently developed AP8000 universal programmer includes three main parts: the host, the baseboard, and the adapter seat.

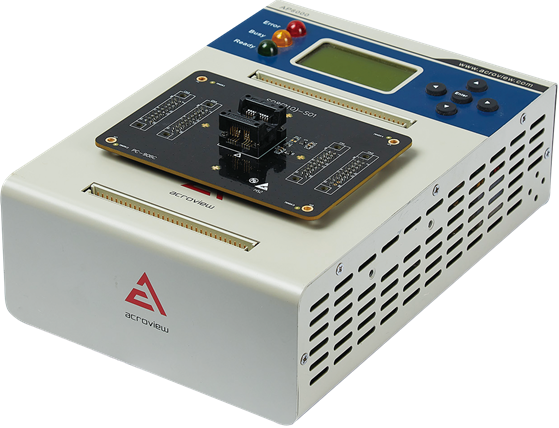

AP8000_universal programmer

The host supports USB and NET connections, allowing multiple programmers to be networked together to simultaneously control and programme multiple programmers. The built-in chip security circuit ensures that even if the chip is reversed or short-circuited for other reasons, it can be immediately detected and powered off to ensure the safety of the chip and programmer. The embedded high-speed FPGA greatly accelerates data transmission and processing. The back of the host has an SD card slot, where engineering files created by PC software can be placed in the root directory of the SD card and inserted into the slot. Through the buttons on the programmer, engineering files can be selected, loaded, and programming commands can be executed, achieving the purpose of operation without a PC, greatly reducing PC hardware configuration costs and facilitating rapid adaptation to the working environment.

The AP8000, through the baseboard and adapter board, enhances the expandability of the host. It currently supports devices produced by all mainstream semiconductor manufacturers, including TI, ST, MicroChip, Atmel, Hynix, Macronix, Micron, Samsung, Toshiba, etc. The supported device types include NAND, NOR, MCU, CPLD, FPGA, EMMC, etc., and support various file formats such as Intel Hex, Motorola S, Binary, POF, etc.



Company Introduction



About AdvanceChip: AdvanceChip is an integrated circuit design enterprise specializing in the research and development of digital signal processor (DSP) chips and embedded solutions. The company possesses advanced software and hardware design platforms and a specialized, high-quality DSP design team, aiming to develop core DSP technologies, achieve independent and controllable DSP chips, and provide customers with independent, controllable, secure, reliable, and efficient DSP products, solutions, and supporting services. Established in October 2012, AdvanceChip has successfully developed and mass-produced a series of DSP products representing 32-bit fixed-point operation, 32-bit floating-point operation, and 16-bit fixed-point operation, such as ADP32, AVP32, and ADP16.


About Acroview: Acroview is a leading global provider of semiconductor chip programming solutions. The company adheres to the belief that technology changes the world and drives the future with intelligence, continuously creating value for its customers. Acroview's AP8000 universal programmer platform and the latest IPS5000 programming automation solution provide a one-stop solution for customers in the semiconductor and electronics manufacturing industries. The company has served leading global customers including Huawei, BYD, and Foxconn.
