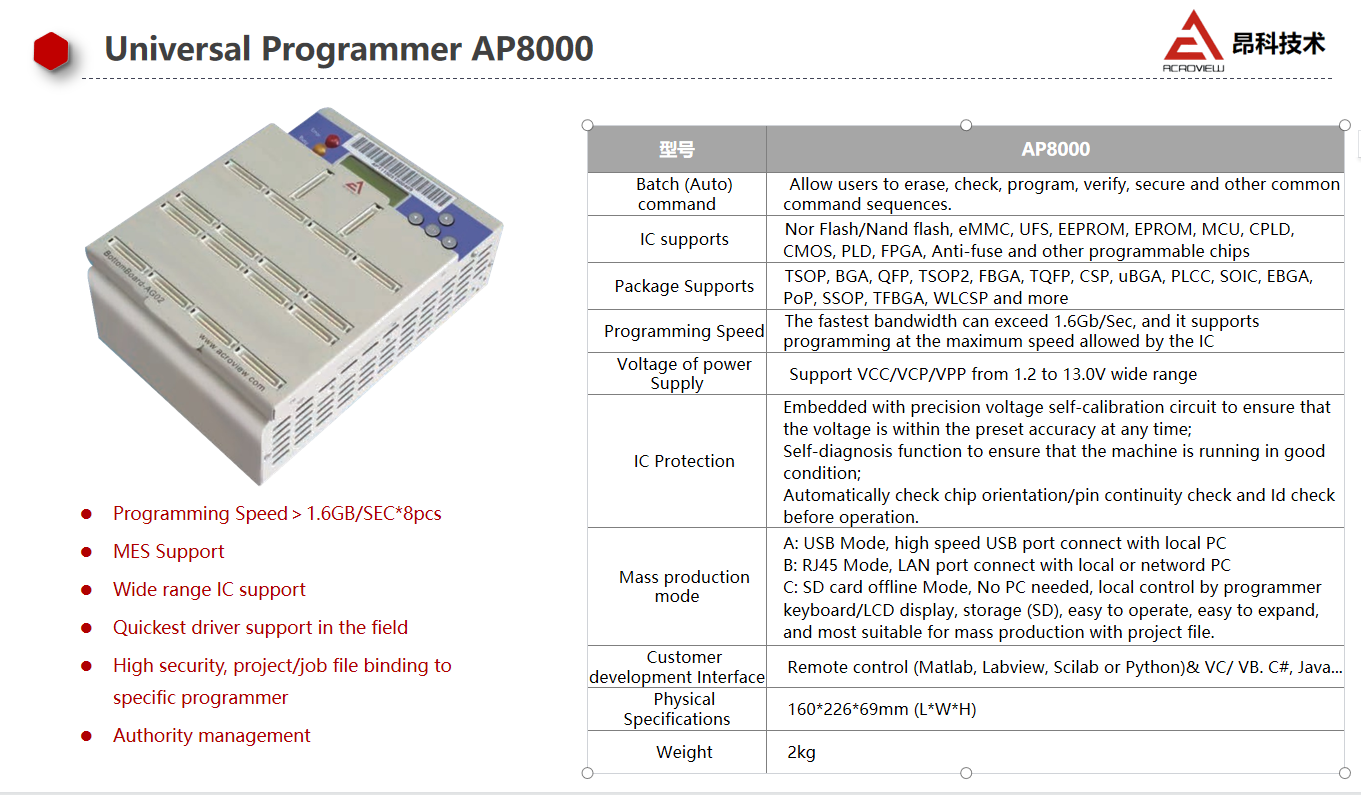

Universal Programmer AP8000
Universal Programmer AP8000
Universal Programmer AP8000
Universal Programmer AP8000
Universal Programmer AP8000
Universal Programmer AP8000

Universal Programmer AP8000

概要:AP8000 universal programmer
Product Highlight: Extreme performance
AP8000 designed with all new and advanced technologies in programmer industrial, with fastest programming speed and high accuracy pin driver circuit to achieve the extremely programming quality and productivity.
Supports three operation mode.
1) USB connection mode. Communicate with local PC through USB2.0 port (high speed) to realize online control;
2) RJ45 online mode. Connect to the intranet through the RJ45 cable to realize online control;
3) SD card offline mode. Leverage the keyboard, LCD display, external memory storage (standard SD card), it can be run independently off-line, easy to operate, easy to expand, and most suitable for mass production with project file.

其他:

Wide range device support.

NOR Flash/Nand flash, eMMC, EEPROM, EPROM, Micro-controller,

CPLD, CMOS PLD, FPGA, Anti-fuse and other customized chips.


Embedded high-speed FPGA

The fastest bandwidth can exceed 1.6Gb/Sec, and it supports programming at the maximum speed allowed by the IC.


Wider voltage range

Supports VCC/VCP/VPP devices with a wide range of 1.2V to 13.0V.


Advanced and precise pin driver technology

It can provide high-speed, stable and precise signals of IC specifications, fastest programming and highly yield.


Chip security guarantee mechanism

Embedded with precision voltage self-calibration circuit to ensure that the voltage is within the preset accuracy at any time;

Self-diagnosis function to ensure that the machine is running in good condition;

Automatically check chip orientation/pin continuity check and Id check before operation.


Programmer protection

Perfect over-voltage, over-current and ESD protection functions.


Green products

The real green environmental protection (power efficiency>90%) energy-saving programming equipment, without fan.


Setup operation is extremely simple


After connected with USB/RJ45/SD card connection, select the programming function (Program, Verify, Auto... etc.) to start.

Friendly and powerful software functions simplify operations, prevent the operation errors and improve efficiency


1) Project. Configured and save the programming setting included the program file/configuration to prevent the operation errors.

2) Batch (Auto) command. Allow users to erase, check, program, verify, secure and other common command sequences.

3) Mass production mode. Detect the socket status, once the chip is detected and the operation is automatically started, no manual buttons are required.

4) Dynamic buffer. The data programmed for each chip can be different, and the software automatically completes data changes according to user requirements.

Including standard and customized serial number generator (such as MAC address, etc.).

5) Log files. For quality tracking and traceability.

6) Intellectual property protection function. SD card encryption, project file authority management and encryption, output restriction, remote control.

7) File format. Support almost all kinds of known file formats and have automatic file format recognition function.

8) Real-time status display. Very intuitive and real-time display and analysis of programming status and production statistics.

9) Custom algorithm. Accept user special functions and algorithm software customization

10) File mirroring management. Super powerful Image image management, including ECC, bad block processing, etc.


Fully Device support

Flash memory device:

Supports tier 1 memory devices including:

Cypress ESMT Etron Samsung SK Hynix Kioxia Macronix Microchip Micron Winbond ... and many more!


Including:

NAND NOR MoviNAND iNAND eMMC eSD GBNAND SD MMC OneNAND UFS... and many more!


NAND bad block management:

• Technology to skip bad blocks

• Other NAND Flash bad block management methods recognized by chip manufacturers


Microcontroller:

Cypress Infineon Microchip NXP Renesas Samsung ST Silicon Labs TI Toshiba... and many more!


Support all mainstream packages:

TSOP CSP SOIC SSOP BGA FBGA uBGA EasyBGA TFBGA QFP TQFP PLCC PoP WLCSP... and many more!


Common programming function options:

Program Read Verify Blank Check Illegal Bit Check Erase Secure PinContinuity Protec/UnProtect Autosense


Specification

Communication port

• RJ45 port

• USB port


Electrical requirements

• Working voltage: 110 to 240 VAC

• Power: 3 watts

• Frequency range: 50 to 60 Hz


Physical specifications

• Width: 16.0cm

• Length: 22.6cm

• Height: 6.9cm

• Weight: 2kg


Environmental requirements

• Ordinary office environment/power supply


Temperature

• Working temperature: 0°C to +50°C

• Transport temperature: -4°C to +70°C

• Storage temperature: 0°C to +70°C


Humidity

• Working humidity: up to 70%, no condensation

• Storage humidity: up to 80%, no condensation


Service

• One year warranty

• Free software upgrades


Windows computer requirements:

• Operating system: Windows 2000, XP, or above

• Hard disk capacity: minimum 2 GB plus storage capacity for device data

• SD card slot (for task card, optional configuration)

• Network Interface

• USB interface

• CD ROM drive


Standard package.

1. AP8000 programmer

2. Power cord

3. USB 2.0 cable

4. Network cable

5. Driver by CD

6. User manual

7. Warranty card

8. Disclaimer
